Armbridge Pre-Flared Installation Kit for Ductless Mini Split 16/25/50 ft
Armbridge Pre-Flared Installation Kit for Ductless Mini Split 16/25/50 ft
Regular price
$181.00 USD
Regular price
Sale price
$181.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product Overview
Product Overview
Armbridge — Installation Kits for Wall Mount Mini Split (9k–36k BTU)
Installation Kit ofers ease and convinience for HVAC technicians while providing a long-lasting, quality product that customers will not have to replace
Insulated Copper tubes 9k–36k BTU Data communication wires 115V / 230V Drain Hose 16/25/50FT Options Sleeve cover
Watch: Overview
Why Pros choose Armbridge Kits
- Faster Installs: pre-flared copper, pre-insulaed lines
- Fewer callbacks: triple-layer insulation with UV/UV-C protection and thickened brass flare nuts hold up over time.
- Code-grade materials: 99.9% copper (ASTM B280) and insulation meeting ASTM D154.
- Broad compatibility: supports 9k–36k BTU systems with common liquid/suction sizes.
- Right length on the truck: 16/25/50-ft options simplify inventory and waste.
At-a-glance
Capacity Range
9k–36k BTU (≈0.75–3 Ton)
9k–36k BTU (≈0.75–3 Ton)
Length
16/25/50 ft
16/25/50 ft
Liquid/Suction Lines
1/4" | 3/8"
1/4" | 1/2"
3/8" | 5/8"
1/4" | 5/8"
3/8" | 3/4"
3/8" | 7/8"
1/4" | 3/8"
1/4" | 1/2"
3/8" | 5/8"
1/4" | 5/8"
3/8" | 3/4"
3/8" | 7/8"
Copper Line Set
99.9% Copper (ASTM B-280)
All ends are pre-flared
99.9% Copper (ASTM B-280)
All ends are pre-flared

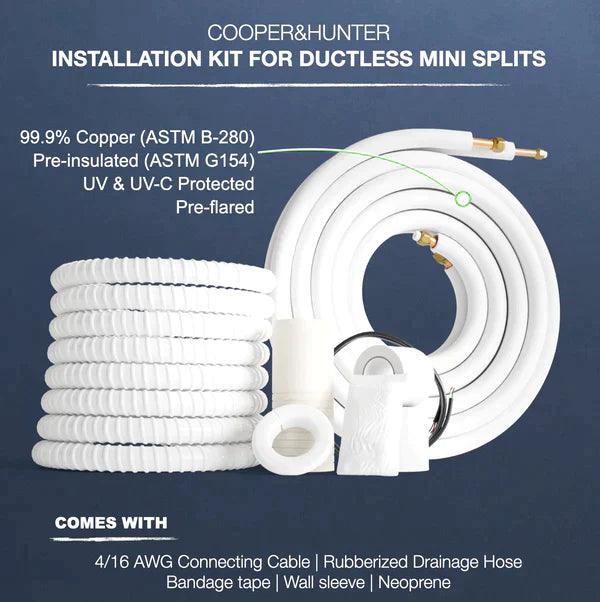

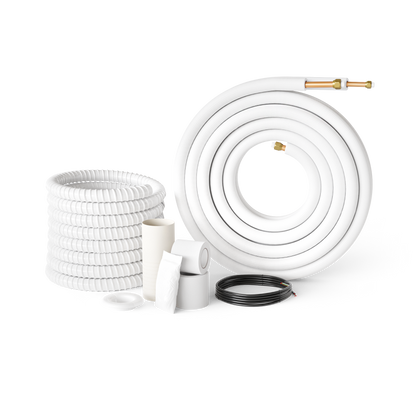

What’s included
- Insulated Copper Tubes
- Data Communication Wires
- Wrapping Bands
- Drain Hose
- Sleeve Cover
- PVC Wall Corner
- Sealing Mud
- Line Set for Ductless Mini Split Systems Insulated Pre-Flared with nuts
- Liquid Line
- Suction Line

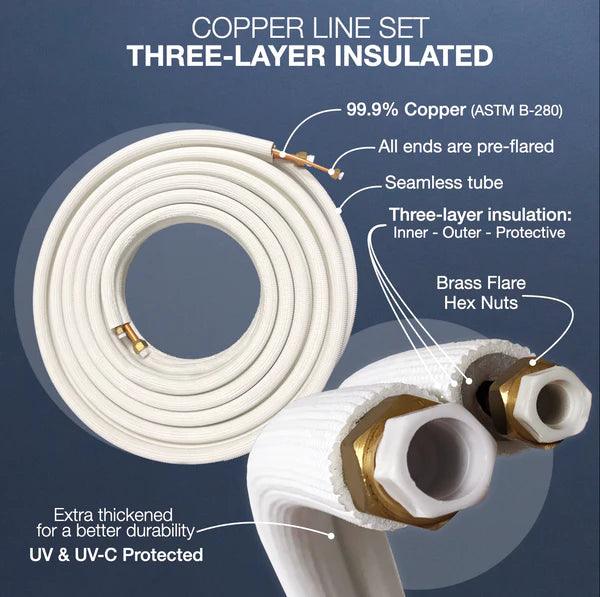

Key features
- Seamless tube
- Three-layer insulation: Inner, Outer, Protective
- Brass Flare Hex Nuts
- Extra thickened for a better durability
- UV & UV-C Protected

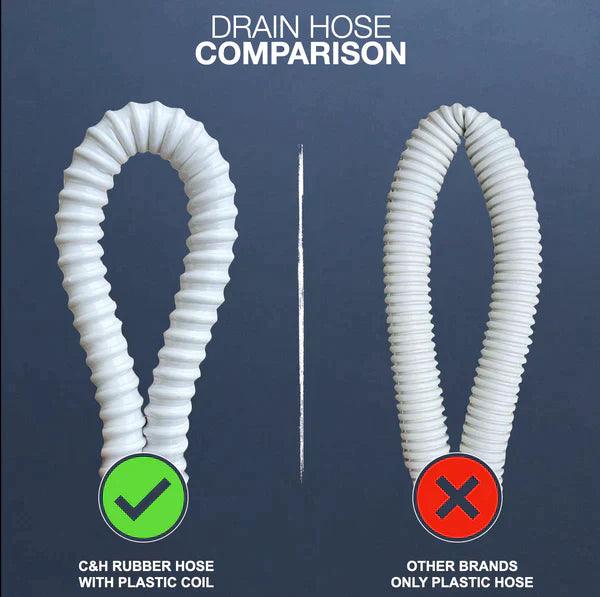

- Rubber Hose with Plastic Coil
- 4/16 AWG Connecting Cable
- Rubberized Drainage Hose
- Bandage tape
- Wall Sleeve
- Neoprene
Manufacturer may change specifications without notice.

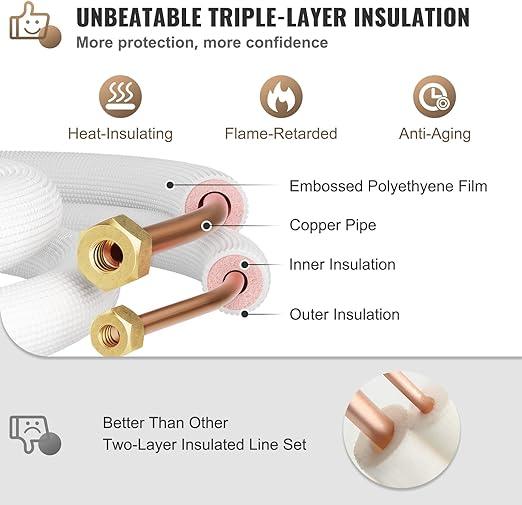

Unbeatable Triple-Layer Insulation
- Heat-Insulating
- Flame-Retarded
- Anti-Aging
- Embossed Polyethyene Film
- Copper Pipe
Warranty
5-Year Compressor and 2-Year Parts (brand terms apply; registration required).
Register within 60 days of installation; see manufacturer warranty for details.
Tech specs — Models & performance
All data below is from the manufacturer’s.
| Model | Rubber Drain Hose Length | Line Set Size (Liquid- Suction) | Copper Line Length | Cable Length |
|---|---|---|---|---|
|
AB1-16FT AB1-25FT AB1-50FT |
16FT |
1/4"-3/8" Inches |
18 FT |
16 FT 29.5 FT 55.8 FT |
| AB2-16FT AB2-25FT AB2-50FT |
16FT | 1/4"-1/2" Inches | 18 FT 25FT 50FT |
16 FT 29.5 FT 55.8 FT |
| AB3-16FT AB3-25FT AB3-50FT |
16FT | 3/8"-5/8" Inches | 18 FT 25 FT 50 FT |
16 FT 29.5 FT 55.8 FT |
|
AB4-25FT |
16 FT | 3/8"-3/4" Inches | 25 FT 50 FT |
29.5 FT 55.8 FT |
|
AB6-25FT |
16 FT | 3/8"-7/8" Inches |
25 FT |
29.5 FT 55.8 FT |
| AB7-25FT | 16 FT |
1/4"-5/8" Inches |
25 FT | 29.5 FT |
Full description
Tap to expand
Our bundled installation kit offers ease and convenience for HVAC technicians while providing a long-lasting, quality product that customers will not have to replace. Includes 4/16 AWG Connecting Cable, Rubber Drain Hose, Bandage Tape, Wall Sleeve, and Neoprene
• 99.9% Copper (ASTM B-280)
• Pre-insulated (ASTM D154)
• UV & UV-C Protected
• Pre-flared
FAQs
Do they include communication wires?
Yes.
How long are the communication wires?
They're slightly longer than the copper line set- usually a feet more.
Are the lines [pre-chareged with refrigerant?
No.
Are the lines pre-flared?
Yes.
Whats included in the installation kit?
Copper line set, communication wires, neoprene insulation, drainage tube, and bandaging tape.
