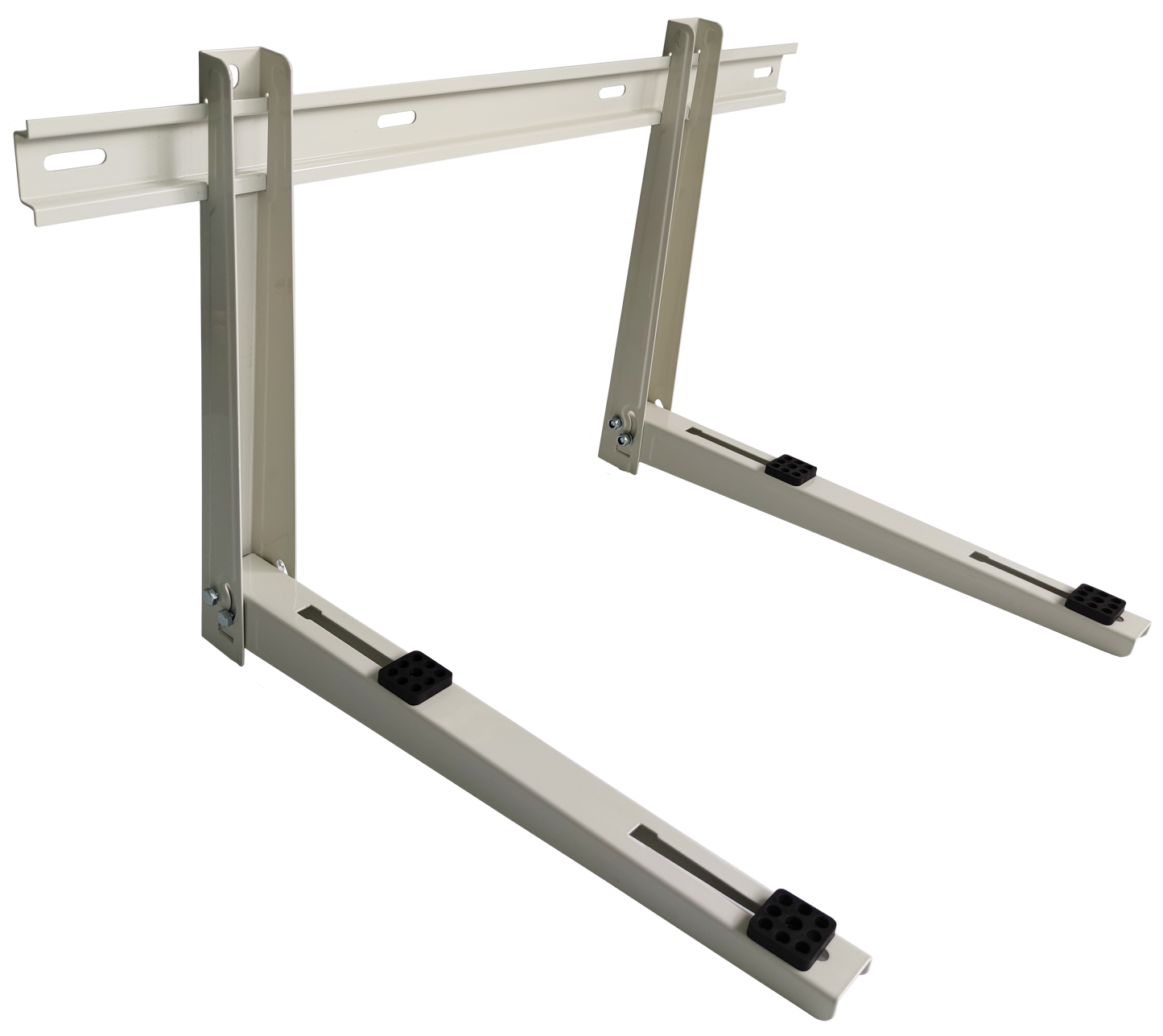

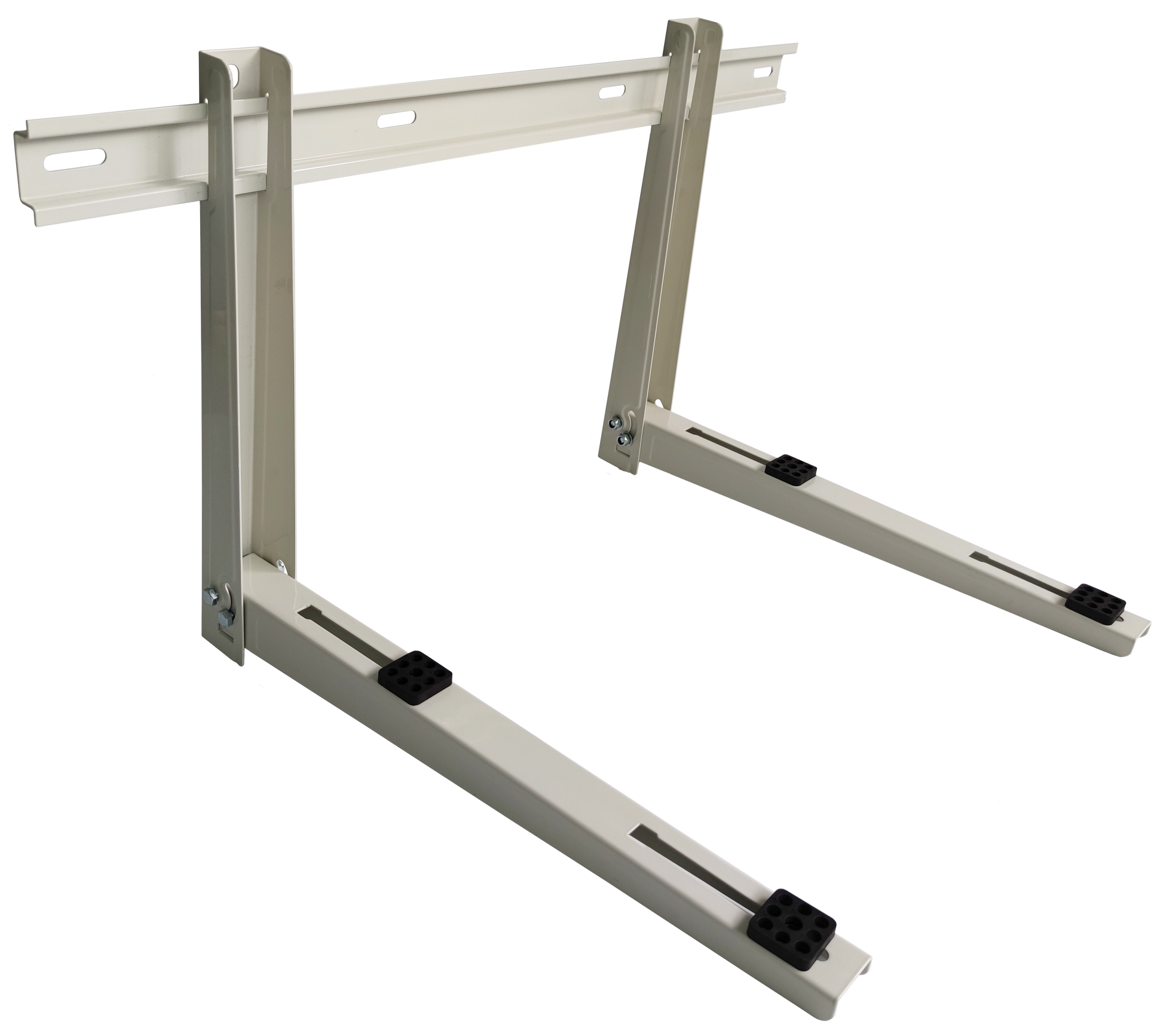

• Zinc Coated Steel
  • Armbridge Video About Us
  • Condenser wall mount bracket on a white background
  • Armbridge store interior with shelves and display boxes, featuring the Armbridge logo.
  • Armbridge Accessories advertisement with text 'Strengthening every connection in HVAC' on a black, red, and white background.
  • Shelves with boxes labeled 'Speed' in a store setting
  • 304 Stainless Steel
1 7

Armbridge - - - - Wall Bracket - -

Armbridge Wall Bracket

Armbridge Wall Bracket

$49.00 USD
$49.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Overview

Armbridge logo

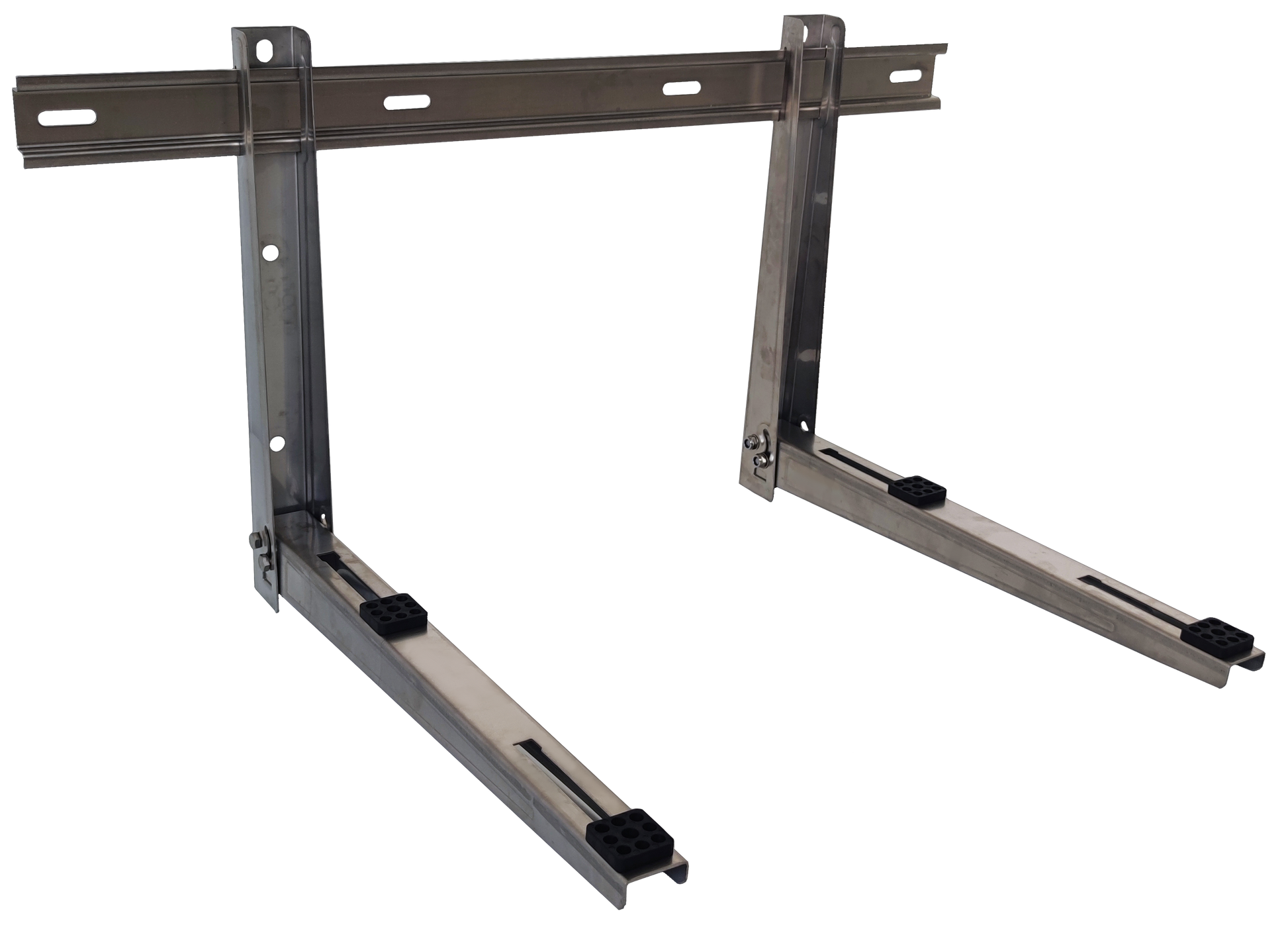

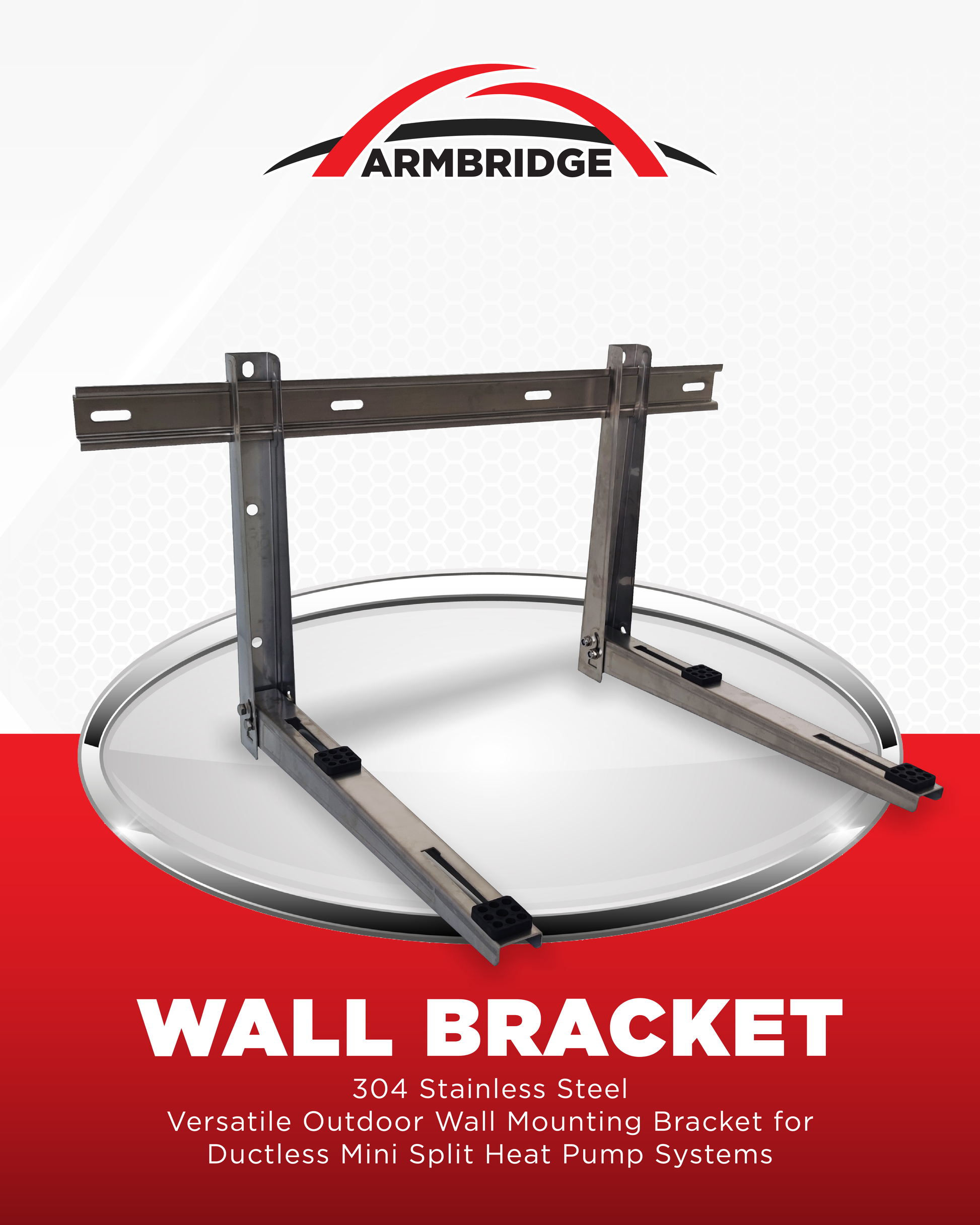

Armbridge — Mini Split Wall Mounting Bracket, 304 Stainless Steel, Foldable

High load capacity bracket for 9,000–36,000 BTU mini split and heat pump units. Built-in vibration control. Compact foldable design.

Up to 550 lbs per set 304 Stainless Steel / Zinc Coated Steel Foldable Vibration pads included Adjustable arms & backstops 9k–36k BTU Hardware kit included

Watch: Overview

Why pros choose this bracket

  • High load capacity: supports up to 550 lbs per set when anchored to suitable structure.
  • Corrosion resistance: 304 stainless steel for coastal and harsh environments.
  • Quieter installs: built‑in vibration pads and shock absorbers reduce noise.
  • Faster setup: foldable arms and adjustable backstops fit most condensers 9k–36k BTU.
  • Complete kit: includes expansion anchors, bolts, washers, and pre‑assembled rubber mounts.
At‑a‑glance
Bracket Type
Foldable wall mount
Material
304 Stainless Steel
Capacity
Up to 550 lbs per set
Compatibility
9,000–36,000 BTU mini splits & heat pumps

What’s included

  • Foldable stainless bracket set with adjustable arms and backstops
  • pre‑assembled rubber vibration mounts
  • M10 3‑9/16 in. expansion bolts for wall anchoring
  • M8 1‑3/16 in. hex bolts
  • washers
  • Installation instructions

Use appropriate fasteners for the wall construction and local code.

Key features

  • 304 stainless steel frame resists rust and corrosion
  • Foldable arms for compact storage and efficient shipping
  • Built‑in vibration control pads and shock absorbers
  • Adjustable arms and backstops for universal fit
  • High load capacity when properly installed

Always mount to a solid structural base per manufacturer instructions.

About ARMBRIDGE

ARMBRIDGE delivers high‑quality HVAC accessories backed by 35+ years of industry experience. With nationwide warehouses and dedicated technical support, we serve distributors, contractors, and technicians across the United States.

Tech specs

Model / Code Material Load Capacity Compatibility Dimensions Included Hardware
AB‑WB‑GT (304 SS wall bracket)

AB‑WB (Zinc Coated Steel)		 304 StainlessStee




Zinc Coated Steel		 Up to 550 lbs per set 9k–36k BTU mini split and heat pump units Vertical bar: 17.71 in
Bottom bar: 21.65 in
Cross bar: 33.46 in		 × M10 3‑9/16 in expansion bolts
 M8 1‑3/16 in hex bolts
 washers
pre‑assembled rubber mounts

Dimensions and hardware per included instructions. Verify fasteners with site conditions.

Full description

Tap to expand

The ARMBRIDGE 304 stainless foldable wall bracket provides a secure, corrosion‑resistant platform for outdoor mini split condensers. Built‑in vibration pads and shock absorbers reduce transmission into the structure. Adjustable arms and backstops fit common 9k–36k BTU units. Foldable design reduces storage and freight volume. Includes a complete hardware kit for typical installations.

FAQs

Are these corrosion-resistant?
Yes.
How much weight can they hold?
Up to 550 lbs per set when anchored to suitable structure with correct fasteners.
Are they vibration-proof?
Yes. Four pre‑assembled rubber mounts are included.
What material are they made of?
304 Stainless Steel or Zinc-coated stainless steel (corrosion-resistant).
What units does it fit?
Most 9,000–36,000 BTU mini split and heat pump condensers with compatible base foot spacing. Adjust arms and backstops to suit.
