Product Overview
Product Overview

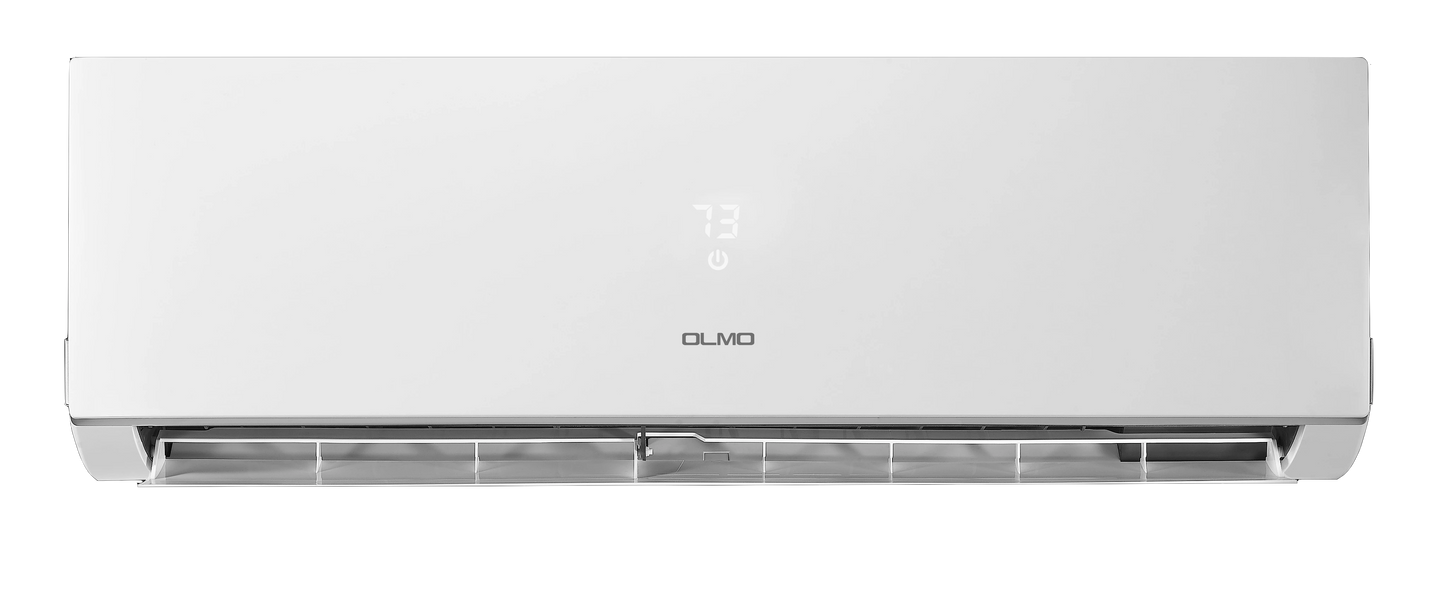

OLMO Multi-Sierra 24,000 BTU Indoor Wall-Mount — OS-M24SRW-230VI
Multi-zone indoor unit with Smart Connect Wi-Fi and full-function remote. Use with OLMO Multi-Sierra outdoor units.
24,000 BTU/h Smart Connect Wi-Fi Sleep • Turbo • Eco Auto Swing Timer Multi-zone IDU
Performance features
- Remote Control Included
- Smart Connect from Anywhere (app)
- Comfortable Sleep Mode
- Turbo and Eco Modes
- Multiple Fan Speeds with Timer
- Louver Auto Swing
- Self-Clean Mode
- LED Display
At-a-glance
Indoor model
OS-M24SRW-230VI
OS-M24SRW-230VI
Series
Multi-Sierra
Multi-Sierra
Power
208–230V, 1Ph, 60Hz
208–230V, 1Ph, 60Hz
Noise (H/M/L)
47 / 45 / 42 dB(A)
47 / 45 / 42 dB(A)
What’s included
- Indoor Unit OS-M24SRW-230VI (24,000 BTU)
- Wi-Fi Adapter (17310900A05963)
- Wireless Remote Control(s)
- Installation Manual & User’s Manual
- Manufacturer Warranty
- Optional: Pre-Flared 99% Copper Installation Kit (16 ft, 25 ft, or 50 ft) — select above
Important: Licensed HVAC installation required for warranty. Register within 60 days.
Tech specs
| Spec | Details |
|---|---|
| Model | OS-M24SRW-230VI |
| BTU rated | 23,400–24,000 Btu/h |
| Power source | 208–230V, 1-Phase, 60Hz |
| Voltage range | 187–253 V |
| Noise level (H/M/L) | 47 / 45 / 42 dB(A) |
| Indoor air flow | 706 |
| Refrigerant piping | Liquid/Gas 3/8″ – 5/8″ |
| Controller | L1-12 |
| Unit dimensions (W×H×D) | 42 3/4 × 12 3/8 × 9 5/16 in |
| Packing dimensions (W×D×H) | 46 1/16 × 15 3/8 × 12 7/16 in |
| Net/Gross weight | 31.97 / 37.48 lb |
| Connectivity | Smart Connect Wi-Fi via included adapter |
Documents
Warranty
- 5-year compressor limited warranty
- 2-year parts limited warranty (licensed install required)
- 1-year remote control
FAQs
Is this indoor unit compatible with single-zone systems?
No. Use with OLMO Multi-Sierra multi-zone outdoor units.
Does it include Wi-Fi?
Yes. Smart Connect adapter (17310900A05963) is included.
Do I need an installation kit?
Yes. Select a 16, 25, or 50 ft pre-flared copper kit above.
Who must install it for warranty?
A licensed HVAC professional. Register within 60 days.
