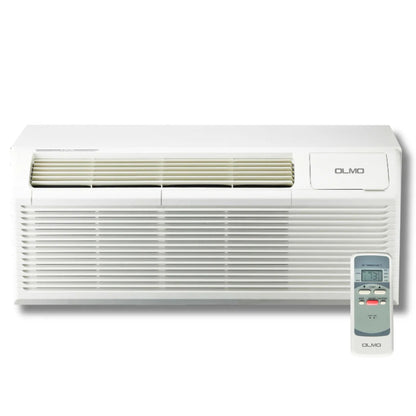

• White air conditioner with remote control on a white background
  • OLMO PTAC
  • ptacqualities
  • Selectdropdownindescriptiontoselectsleeveandgrill
  • OLMPPTACREMOTE
  • PTAC2
  • PTAC1

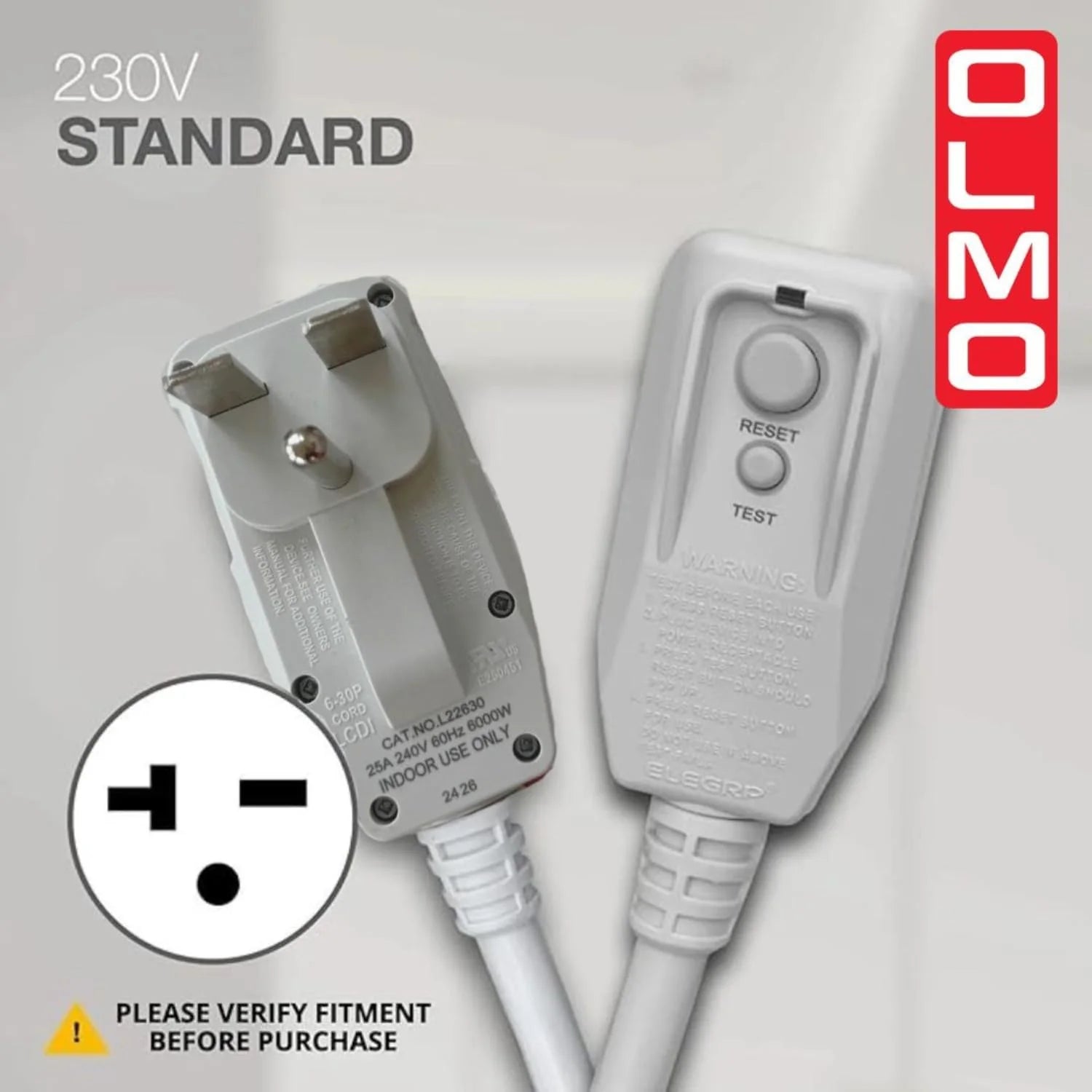

  • OLMO 230 V standard
1 8

OLMO - R32 - 10.5 - 1 zone - PTAC - OLMO PTAC - 208-230V

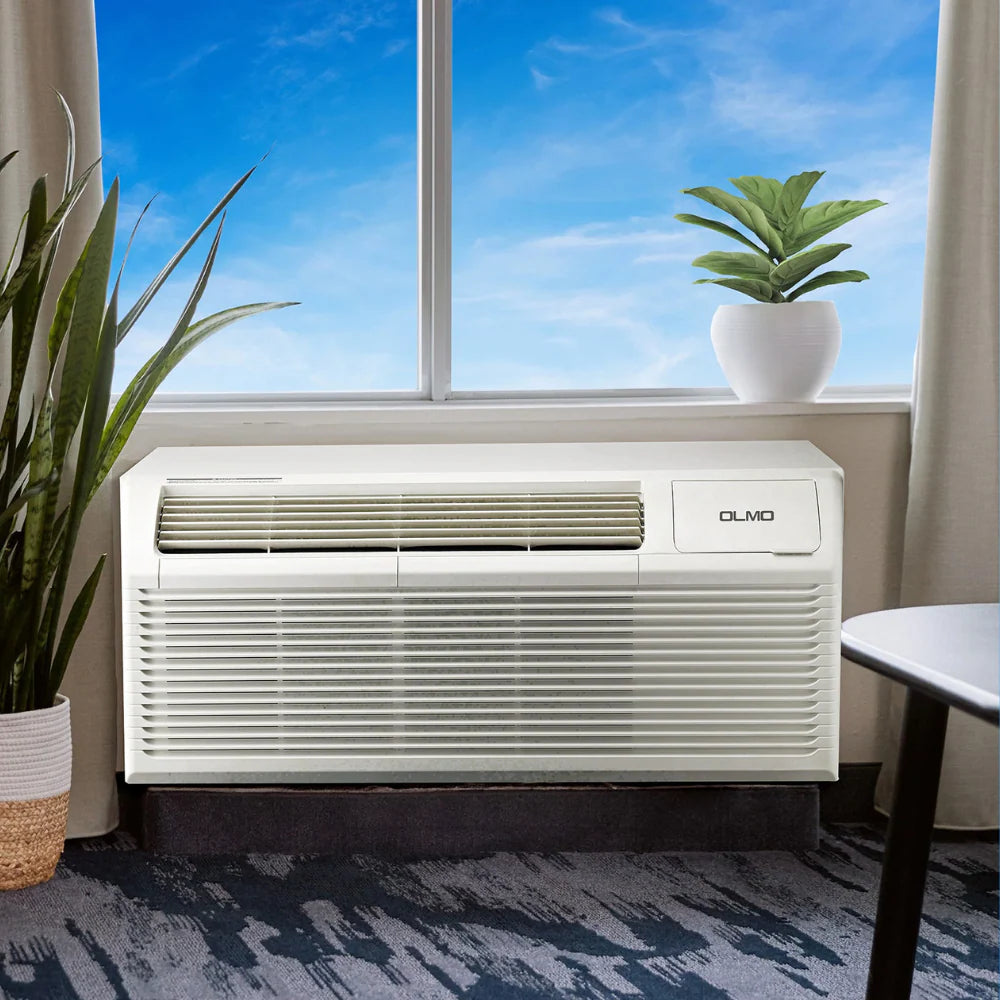

Smart PTAC Heating & Cooling AC Unit – 230V Through-Wall with Remote

Smart PTAC Heating & Cooling AC Unit – 230V Through-Wall with Remote

$726.00 USD
$726.00 USD
Sale Sold out
$726.00 $617.10
You save $108.90 (15% off)
Shipping calculated at checkout.
View full details

Product Overview

OLMO logo
PACKAGED TERMINAL AIR CONDITIONER • HEAT STRIP

Smart PTAC Heating & Cooling AC Unit – 230V Through-Wall with Remote

Durable packaged terminal AC with electric heat strip. Fresh-air intake, smart-ready control, and quiet performance in a sleeve-and-grille install.

R32 Refrigerant EER2 up to 11.3 Heat Strip 3.5–5 kW 208/230V • 1Ph • 60Hz Fresh Air Input 24V Thermostat Compatible
Sleeve + Grille Sleeve Only Grille Only No Accessories

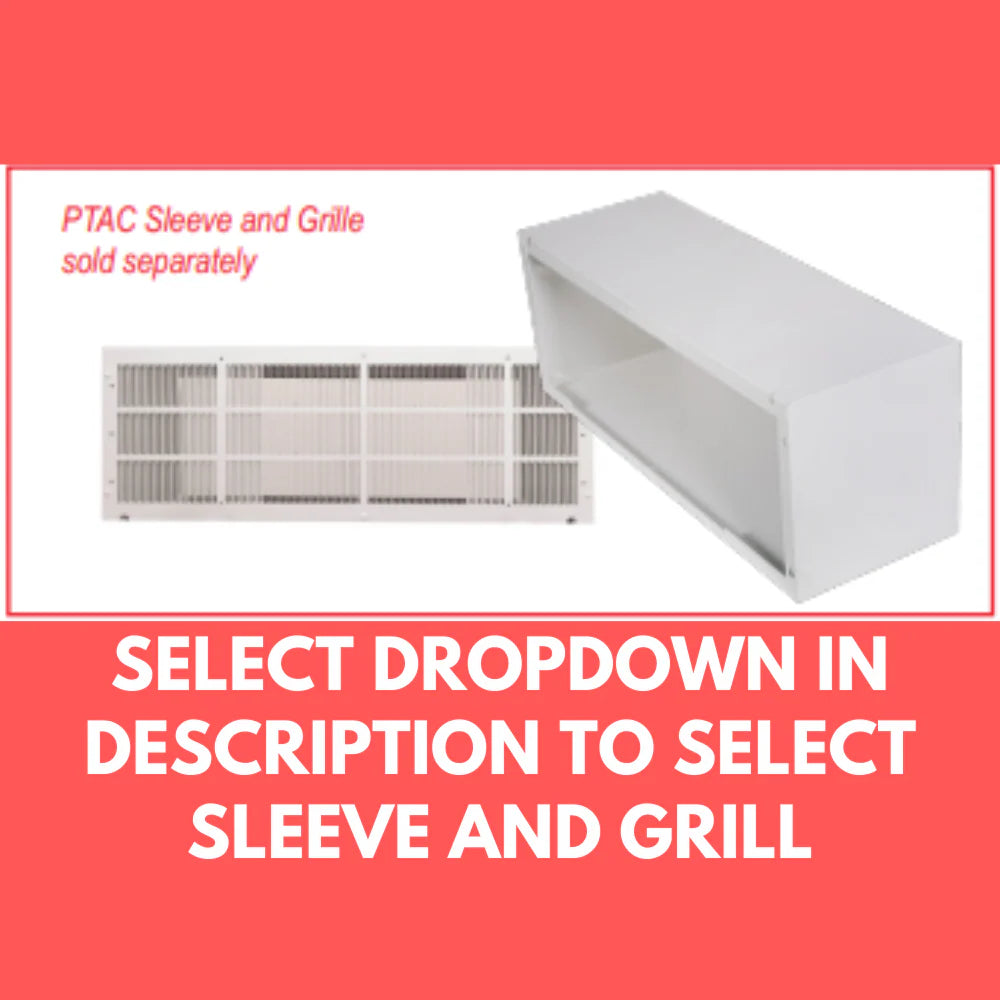

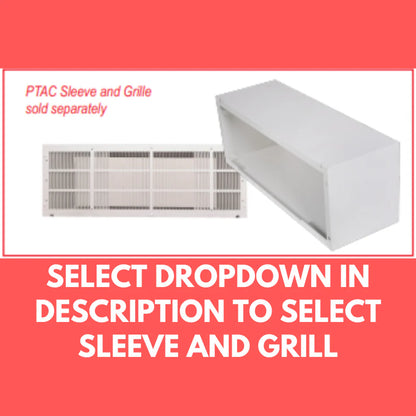

Sleeve & grille sold separately. Select the configuration that matches your install.

Why properties choose this PTAC

  • Reliable comfort: Cool and heat with an electric heat strip for year-round use.
  • Smart-ready: Built-in Smart Connect and 24V thermostat compatibility.
  • Fresh-air intake: Brings in outside air to help improve ventilation.
  • Service-friendly: Standard sleeve/grille install; easy access for maintenance.
  • Guest-friendly controls: Remote control, LED display, Auto Restart, and Defrost.
At-a-glance
Voltage
208/230V, 1Ph, 60Hz
Refrigerant
R32
EER2
Up to 11.3
Heat Strip
3.5–5.0 kW (model-dependent)

Watch: Overview

Key features

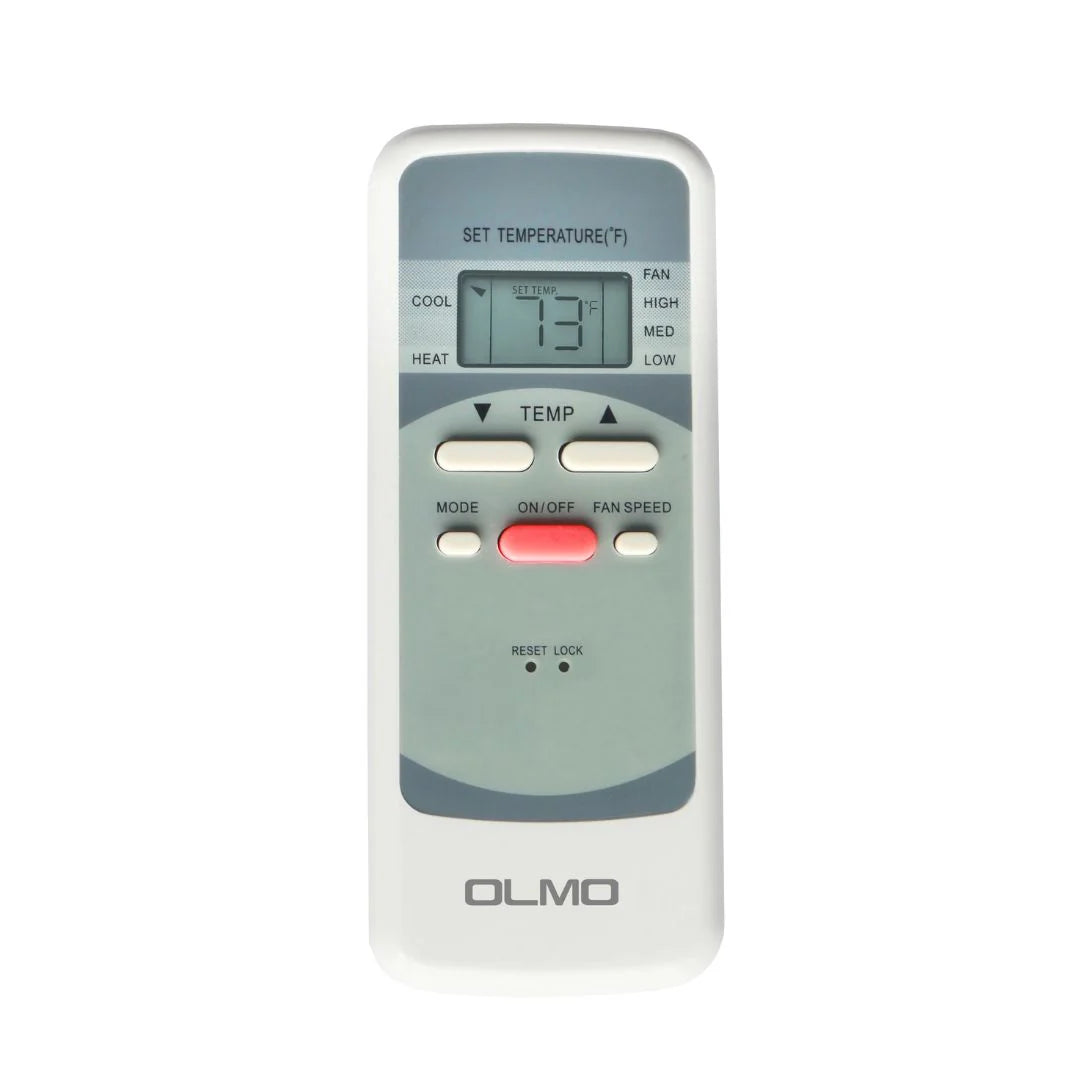

  • Remote Control Included
  • Smart Connect Built-In
  • Auto Defrost
  • Dual Fan Speed
  • Auto Restart Function
  • LED Display
  • Fresh Air Input
  • Compatible with 24V Thermostat

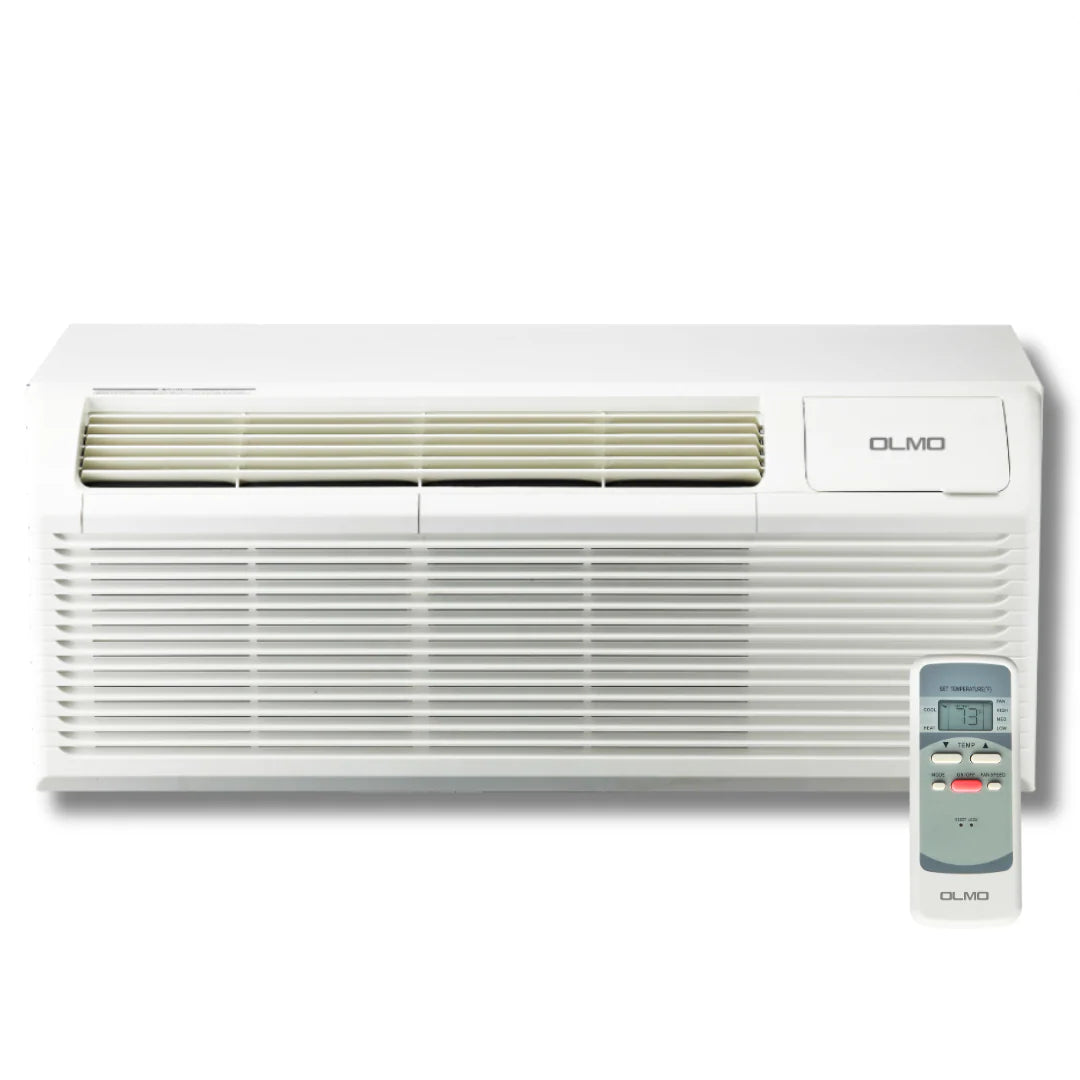

9,000 BTU — OS-MBW-09HS

Power source 208/230V, 1Ph, 60Hz
Cooling capacity (nominal) 9,200 / 9,000 Btu/h
Heating capacity (HS) 3,500 / 2,897 Btu/h
EER 11.3
SEER2 up to 790 / 780
Refrigerant type R32
Refrigerant oil / charge 630 / 626
Outdoor fan input 17 W
Outdoor fan capacitor 20 µF
Outdoor noise level 71 dB(A)
Outdoor air flow VG68 6.4
Rated current (cooling) 20 A
Electrical heating input (heat) 15.3 / 13.7
Dehumidification 430 / 342.4 Pnt/H
Unit dimensions (W×H×D) 61.1 / 57.6 / 50.6 in
Packing dimensions (W×D×H) 28.4 in
Unit weight (Net/Gross) 50 / 49.5 lb
Design pressure 63
Manuals & documents

12,000 BTU — OS-MBW-12HS

Power source 208/230V, 1Ph, 60Hz
Cooling capacity (nominal) 12,000 / 11,800 Btu/h
Heating capacity (HS) 3,500 / 2,897 Btu/h
EER 10.7
SEER2 up to 1,080 / 1,060
Refrigerant type R32
Refrigerant oil / charge 850 / 875
Outdoor fan input 28.5 ±10% W
Outdoor fan capacitor 35 µF
Outdoor noise level 87 dB(A)
Outdoor air flow VG68 10.1
Rated current (cooling) 20 A
Electrical heating input (heat) 14.96 / 13.7
Dehumidification 431.2 / 348.2 Pnt/H
Unit dimensions (W×H×D) 62 × 60 × 56 in
Packing dimensions (W×D×H) 68.47 in
Unit weight (Net/Gross) 52 / 51.5 lb
Design pressure 67
Manuals & documents

15,000 BTU — OS-MBW-15HS

Power source 208/230V, 1Ph, 60Hz
Cooling capacity (nominal) 14,700 / 14,500 Btu/h
Heating capacity (HS) 5,000 / 4,100 Btu/h
EER 10.6
SEER2 up to 1,390 / 1,370
Refrigerant type R32
Refrigerant oil / charge 1,300
Outdoor fan input 34.5 ±10% W (at 1φ-240V-60Hz)
Outdoor fan capacitor 60 µF
Outdoor noise level 87 dB(A)
Outdoor air flow VG68 10.1
Rated current (cooling) 20 A
Electrical heating input (heat) 22.3 / 20.1
Dehumidification 430 / 349.4 Pnt/H
Unit dimensions (W×H×D) 62 × 60 × 56 in
Packing dimensions (W×D×H) 109.05 in
Unit weight (Net/Gross) 51 / 50.5 lb
Design pressure 65
Manuals & documents

Warranty

1 Year Limited Warranty / (registration and terms apply).

Manufacturer reserves the right to discontinue or change specifications at any time without notice.

Full description

Tap to expand

Our packaged terminal air conditioner with heat strip delivers reliable year-round comfort in a standard sleeve and grille install. Smart-ready controls, fresh-air intake, and service-friendly access make it a favorite for multi-room properties, hotels, and retrofits.

Choose your accessory configuration (sleeve + grille, sleeve only, grille only, or none) and wire to a 24V thermostat if desired. Features include Auto Restart, Auto Defrost, LED display, dual fan speeds, and quiet operation.

FAQs

Is the sleeve and grille included?
They’re sold separately. Choose “Sleeve + Grille,” “Sleeve only,” “Grille only,” or “No accessories” above.
Does this work with a standard 24V wall thermostat?
Yes. It’s 24V thermostat compatible. Follow the wiring diagram in the installation manual.
What’s the warranty?
1-Year Limited Warranty (registration and terms apply).
Is it smart-enabled?
Yes, Smart Connect is built-in for app control options. You can also use the included remote.
