OLMO - R32 - 10.6 - 1 zone - TTW - OLMO TTW - 110-115V and 208-230V

Smart Window / Through-Wall AC – Heat, Cool, 115V or 230V

Smart Window / Through-Wall AC – Heat, Cool, 115V or 230V

$504.00 USD
$504.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Overview

OLMO logo
THROUGH-THE-WALL AIR CONDITIONER • SMART READY

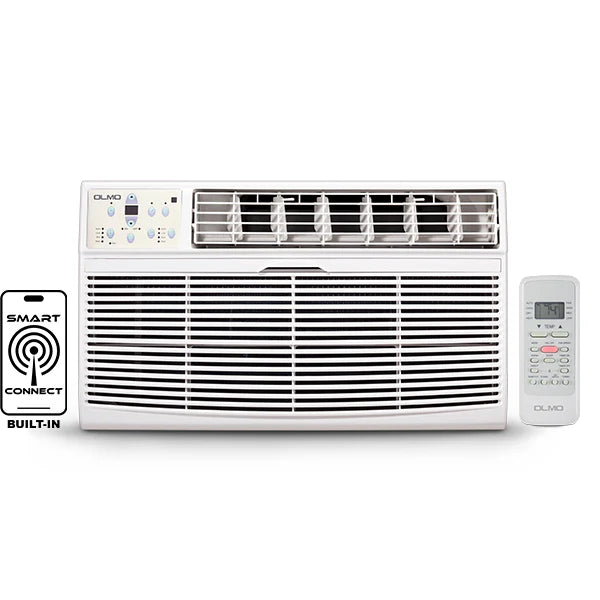

Olmo Smart Through-The-Wall (TTW) Air Conditioner — 115V / 230V

Seamless in-wall cooling with remote, Smart Connect app control, Sleep Mode, Timer, Auto Restart, and a self-evaporative system. Quiet, efficient, and easy to live with.

R32 Refrigerant Smart Connect Remote Included Sleep Mode Self-Evaporative Fresh Air Input

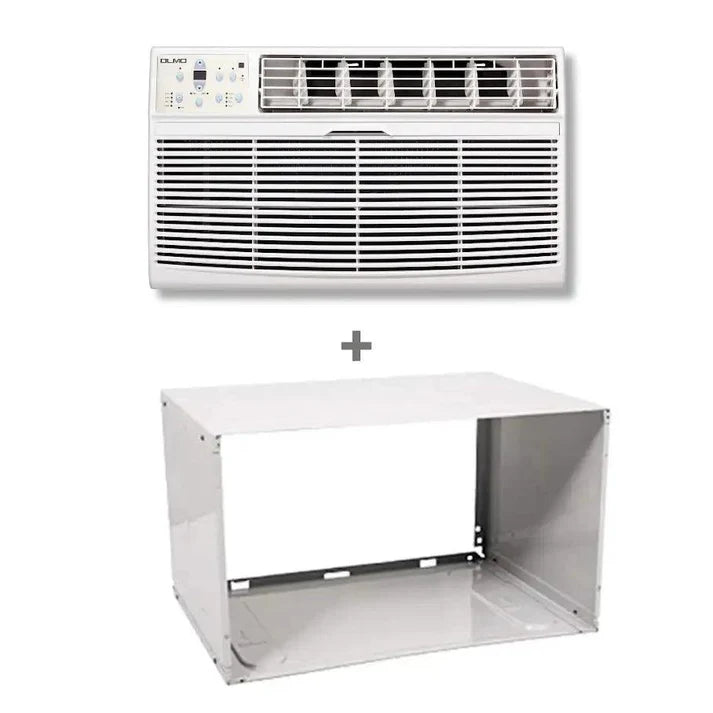

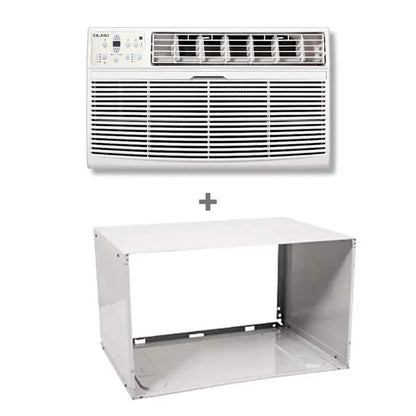

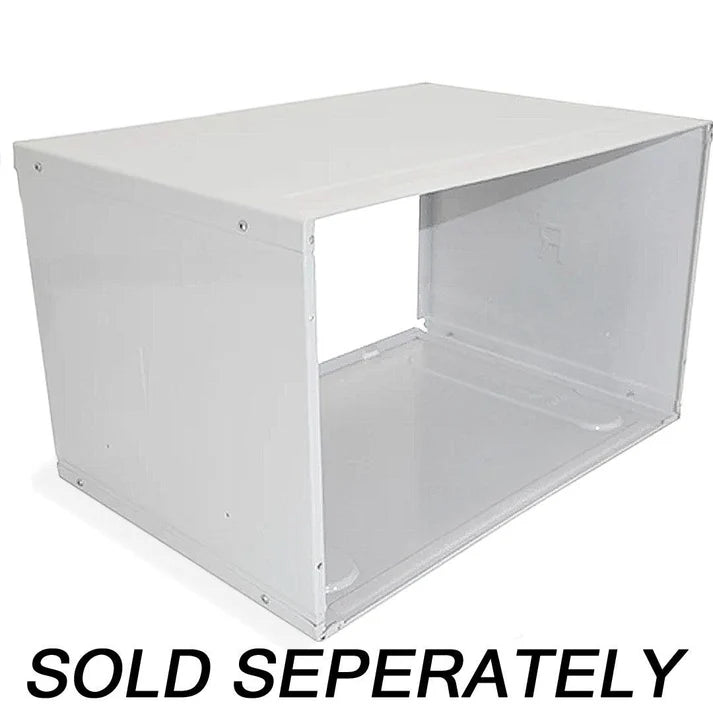

Sleeve sold separately. Select the configuration that matches your install.

Why homeowners love it

The Olmo “Through The Wall” unit blends convenience, efficiency, and comfort in a sleek package. Control it from the couch with the remote—or from anywhere with Smart Connect on your phone. Ideal for bedrooms, living rooms, and offices.

Key features

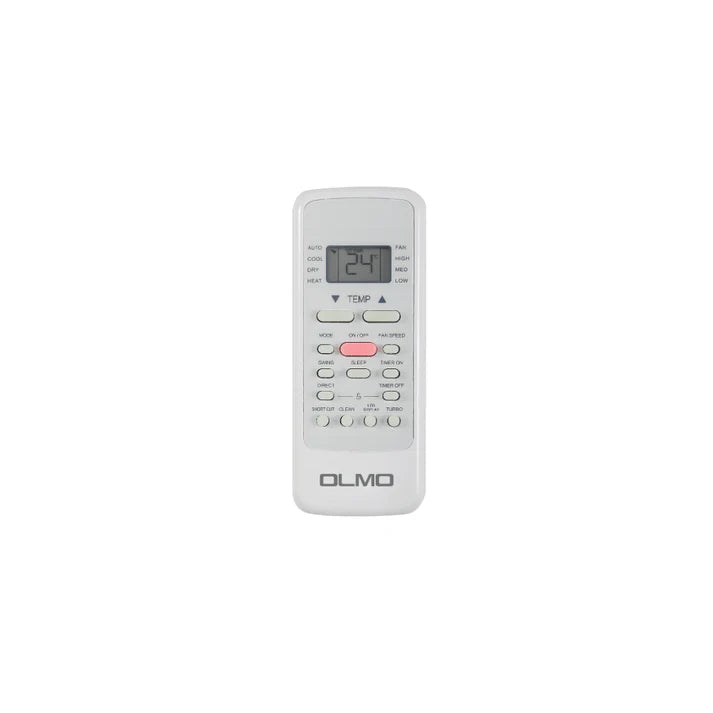

  • Remote Control Included
  • Smart Connect from Anywhere
  • Comfortable Sleep Mode
  • Auto Restart Function
  • Multiple Fan Speeds
  • Timer
  • Self-evaporative System
  • Compound Filter
  • LED Display
  • Fresh Air Input

Watch: Overview

Tech specs — OW-P08AC115WF (8,000 BTU, 115V, Ac Only)

Power source 115V, 1Ph, 60Hz
Cooling capacity (nominal) 8,300 Btu/h
EER 3.11
SEER2 up to 10.6
Refrigerant type R32
Refrigerant oil / charge VG68 6.4
Compressor ROTARY — 577 W input, 2.395 kW capacity
Outdoor fan input 140 W
Outdoor fan capacitor 15 µF
Locked rotor (LRA) 36 A
Outdoor noise level (Hi/Mid/Lo) 63.6 / 59.4 / 55.9 dB(A)
Outdoor air flow (Hi/Mid/Lo) 270 / 233 / 203 CFM
Rated current (cooling) 5.10 A

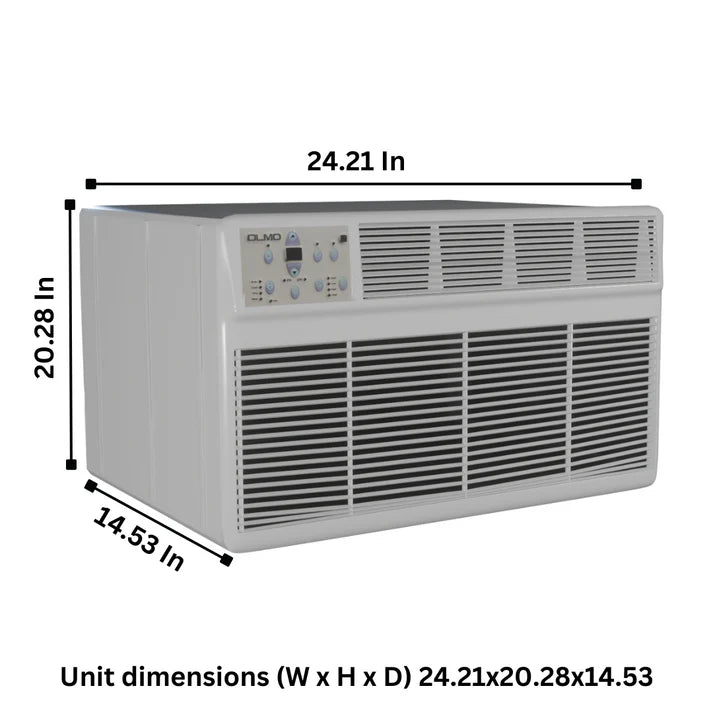

Unit dimensions (W×H×D) 24.21 × 20.28 × 14.53 in
Packing dimensions (W×D×H) 27.95 × 26.57 × 16.93 in
Unit weight (Net/Gross) 65.48 / 77.16 lb
Design pressure (Low/High) 300 / 520
Manuals & documents

Tech specs — OW-P08HS115WF (8,000 BTU Cool / Heat Strip, 115V)

Power source 115V, 1Ph, 60Hz
Cooling capacity (nominal) 8,000 Btu/h
Heating HS capacity 4,200 Btu/h
EER 3.13
SEER2 up to 9.6
Refrigerant type R32
Refrigerant oil / charge VG68 6.4
Compressor ROTARY — 577 W input, 2.395 kW capacity
Electrical heat (input / current) 1,220 W / 11 A
Outdoor noise level (Hi/Mid/Lo) 63.5 / 59.7 / 55.9 dB(A)
Outdoor air flow (Hi/Mid/Lo) 259 / 227 / 192 CFM
Rated current (cooling) 5.10 A
Unit dimensions (W×H×D) 24.21 × 20.28 × 14.53 in
Packing dimensions (W×D×H) 27.95 × 26.57 × 16.93 in
Unit weight (Net/Gross) 66.80 / 77.16 lb
Design pressure 300 / 520
Manuals & documents

Tech specs — OW-P12AC115WF (12,000 BTU, 115V, AC Only)

Power source 115V, 1Ph, 60Hz
Cooling capacity (nominal) 12,000 Btu/h
EER 3.08
SEER2 up to 10.5
Refrigerant R32
Refrigerant oil / charge VG74 10.8
Compressor ROTARY — 840 W input, 3.545 kW capacity
Outdoor fan input 170 W
Locked rotor (LRA) 49 A
Outdoor noise level 68.7 / 65.3 / 62 dB(A)
Outdoor air flow 276 / 251 / 220 CFM
Rated current (cooling) 7.30 A
Unit dimensions (W×H×D) 24.21 × 20.28 × 14.53 in
Packing dimensions (W×D×H) 27.95 × 26.57 × 16.93 in
Unit weight (Net/Gross) 74.96 / 87.52 lb
Design pressure 300 / 520
Manuals & documents

Tech specs — OW-P12AC230WF (12,000 BTU, 208–230V, AC Only)

Power source 208–230V, 1Ph, 60Hz
Cooling capacity (nominal) 12,000 / 11,700 Btu/h
EER 3.08
SEER2 up to 10.5
Refrigerant R32
Refrigerant oil / charge VG68 10.1
Compressor ROTARY — 850/875 W input, 3,590/3,620 W capacity
Outdoor fan input 170 W
Outdoor fan capacitor 6 µF
Locked rotor (LRA) 28.5 A
Outdoor noise level 68.3 / 66.7 / 63.9 dB(A)
Outdoor air flow 275 / 259 / 237 CFM
Rated current (cooling) 4.18 / 3.85 A
Unit dimensions (W×H×D) 24.21 × 20.28 × 14.53 in
Packing dimensions (W×D×H) 27.95 × 26.57 × 16.93 in
Unit weight (Net/Gross) 74.52 / 86.86 lb
Design pressure 300 / 520
Manuals & documents

Tech specs — OW-P12HS230WF (12,000 BTU Cool / Heat Strip, 208–230V)

Power source 208–230V, 1Ph, 60Hz
Cooling capacity (nominal) 12,000 / 11,700 Btu/h
Heating HS capacity 10,600 / 8,600 Btu/h
EER 2.98 / 2.95
SEER2 up to 9.5
Refrigerant R32
Refrigerant oil / charge VG68 10.1
Compressor ROTARY — 850/875 W input, 3,590/3,620 W capacity
Electrical heat (input / current) 3,450 / 2,821 W • 15.0 / 13.5 A
Outdoor noise level 65.4 / 63.2 / 61.1 dB(A)
Outdoor air flow 274 / 252 / 231 CFM
Rated current (cooling) 4.18 / 3.85 A
Unit dimensions (W×H×D) 24.21 × 20.28 × 14.53 in
Packing dimensions (W×D×H) 27.95 × 26.57 × 16.93 in
Unit weight (Net/Gross) 74.96 / 85.76 lb
Design pressure 300 / 520
Manuals & documents

Tech specs — OW-P14AC230WF (14,000 BTU, 208–230V, AC Only)

Power source 208–230V, 1Ph, 60Hz
Cooling capacity (nominal) 14,000 / 13,600 Btu/h
EER 2.78
SEER2 up to 9.5
Refrigerant R32
Refrigerant oil / charge VG68 10.1
Compressor ROTARY — 1,240/1,260 W input, 3,640/3,680 W capacity
Outdoor fan input 170 W
Outdoor fan capacitor 5 µF
Locked rotor (LRA) 34.5 A
Outdoor noise level 69.9 / 68 / 65.9 dB(A)
Outdoor air flow 280 / 265 / 245 CFM
Rated current (cooling) 6 / 5.55 A
Unit dimensions (W×H×D) 24.21 × 20.28 × 14.53 in
Packing dimensions (W×D×H) 27.95 × 26.57 × 16.93 in
Unit weight (Net/Gross) 75.40 / 87.74 lb
Design pressure 300 / 520
Manuals & documents

Tech specs — OW-P14HS230WF (14,000 BTU Cool / Heat Strip, 208–230V)

Power source 208–230V, 1Ph, 60Hz
Cooling capacity (nominal) 14,000 / 13,600 Btu/h
Heating HS capacity 10,600 / 8,600 Btu/h
EER 2.86 / 2.84
SEER2 up to 9.5
Refrigerant R32
Refrigerant oil / charge VG68 10.1
Compressor ROTARY — 1,240/1,260 W input, 3,640/3,680 W capacity
Electrical heat (input / current) 3,450 / 2,821 W • 15.0 / 14.0 A
Outdoor noise level 69.8 / 67.2 / 64.8 dB(A)
Outdoor air flow 272 / 252 / 233 CFM
Rated current (cooling) 6 / 5.55 A
Unit dimensions (W×H×D) 24.21 × 20.28 × 14.53 in
Packing dimensions (W×D×H) 27.95 × 26.57 × 16.93 in
Unit weight (Net/Gross) 77.38 / 87.74 lb
Design pressure 300 / 520
Manuals & documents

Warranty

1-Year Limited Warranty (registration and terms apply).

Manufacturer may change specifications without notice. Always verify electrical and installation details in the current manuals.

Full description

Tap to expand

The Olmo Through-The-Wall (TTW) air conditioner is a sleek, permanent install that cools efficiently without blocking your windows. Control it two ways: with the included remote or via Smart Connect on your phone.

Comfort & convenience features: Sleep Mode, Timer, Auto Restart, multiple fan speeds, self-evaporative condensate management, compound air filter, LED display, and fresh-air intake.

Models are available in 115V and 208/230V with plug types that include LCDI(5-15P), LCDI(6-15P), and LCDI(6-20P) depending on the unit. Refrigerant is R32 for high efficiency.

Tip: Verify electrical outlet/plug type and wall sleeve compatibility before purchase. See the product’s Energy Guide / User Manual linked in the “Manuals & documents” section.

FAQs

Is a wall sleeve required?
Yes. TTW units install in a wall sleeve. If you already have a sleeve, check the cutout and sleeve dimensions in the manual to confirm compatibility.
Is it smart-enabled?
Yes. Smart Connect allows app control from anywhere in addition to the included remote.
What power do I need?
Check your specific model:
  • 115V models use LCDI(5-15P) plugs.
  • 208/230V models use LCDI(6-15P) or LCDI(6-20P) plugs.
What’s the warranty?
1-Year Limited Warranty (registration and manufacturer terms apply).
Does it provide heat?
Some TTW models are AC-only, while others include an electric heat strip (HS). Check the model name and specs to confirm.
